Freestanding industrial enclosures
JS Standalone Cabinets
A standalone floor-mounted cabinet for independent PLC, HMI, VFD, network or motor-control assemblies, available with practical door and mounting-plate configurations.
Used when one self-contained cabinet can house the complete equipment arrangement while preserving cooling, cable routing and maintenance access.
Request enclosure quotation Selection is confirmed against dimensions, layout, environment and the approved drawing.
JS product reference · independent single- or double-door cabinetKEY PARAMETERConstructionFreestanding body with single- or double-door options
CHECK FIRSTExternal dimensions do not equal usable mounting space
RFQ INPUTExternal size and usable mounting area
Product views & construction
See the product before selecting the model.

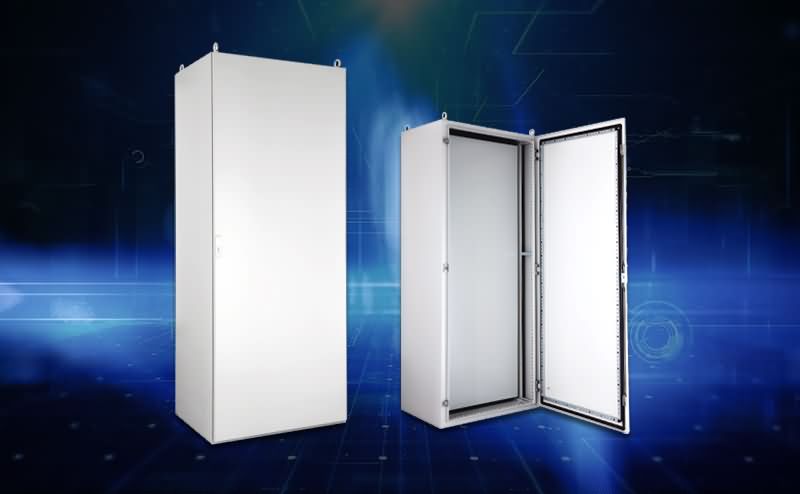

White-background product views show the enclosure format, while the English exploded view identifies the construction. Readable model dimensions are provided as native page content below.
Welded standalone body with independent door, removable rear panel and full-height mounting plate for self-contained control assemblies.

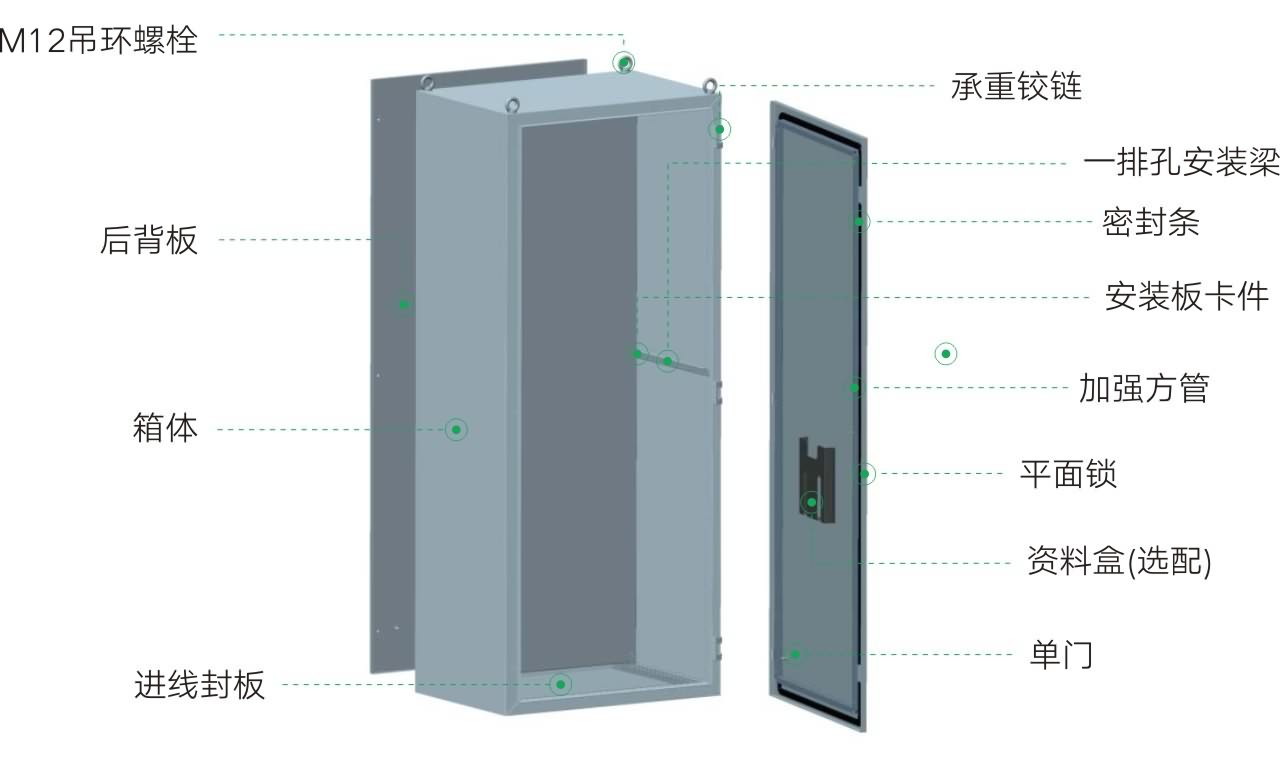

The structure identifies lifting points, body, rear panel, gasketed door, mounting beam, mounting-plate clips and cable-entry plate.
Technical parameters
Selection data
These values describe the enclosure family and the decisions behind selection. The exact construction and dimensions are tied to the confirmed model, option list and approved drawing.
ParameterFamily rangeEngineering note
ConstructionFreestanding body with single- or double-door optionsDoor width, swing and access clearance must suit the installation location.
Reference sheet thickness1.5 mm body and back; 2.0 mm doorsConfirm final construction against panel size, component weight and project basis.
Mounting plate2.5 mm galvanized steel referenceUsable width and height are lower than the external cabinet dimensions.
FinishPowder-coated light gray, RAL 7035 referenceColor, texture and anti-corrosion treatment can be specified separately.
ProtectionIP54 standard design basis; IP55 option by configurationCooling hardware and field cable entry must be included in the rating review.
Door hardwareIndustrial hinges, gasket and lock systemLock style and access control are selected to the operating and maintenance policy.
English dimension reference
Read the drawing codes without zooming into a low-resolution image.

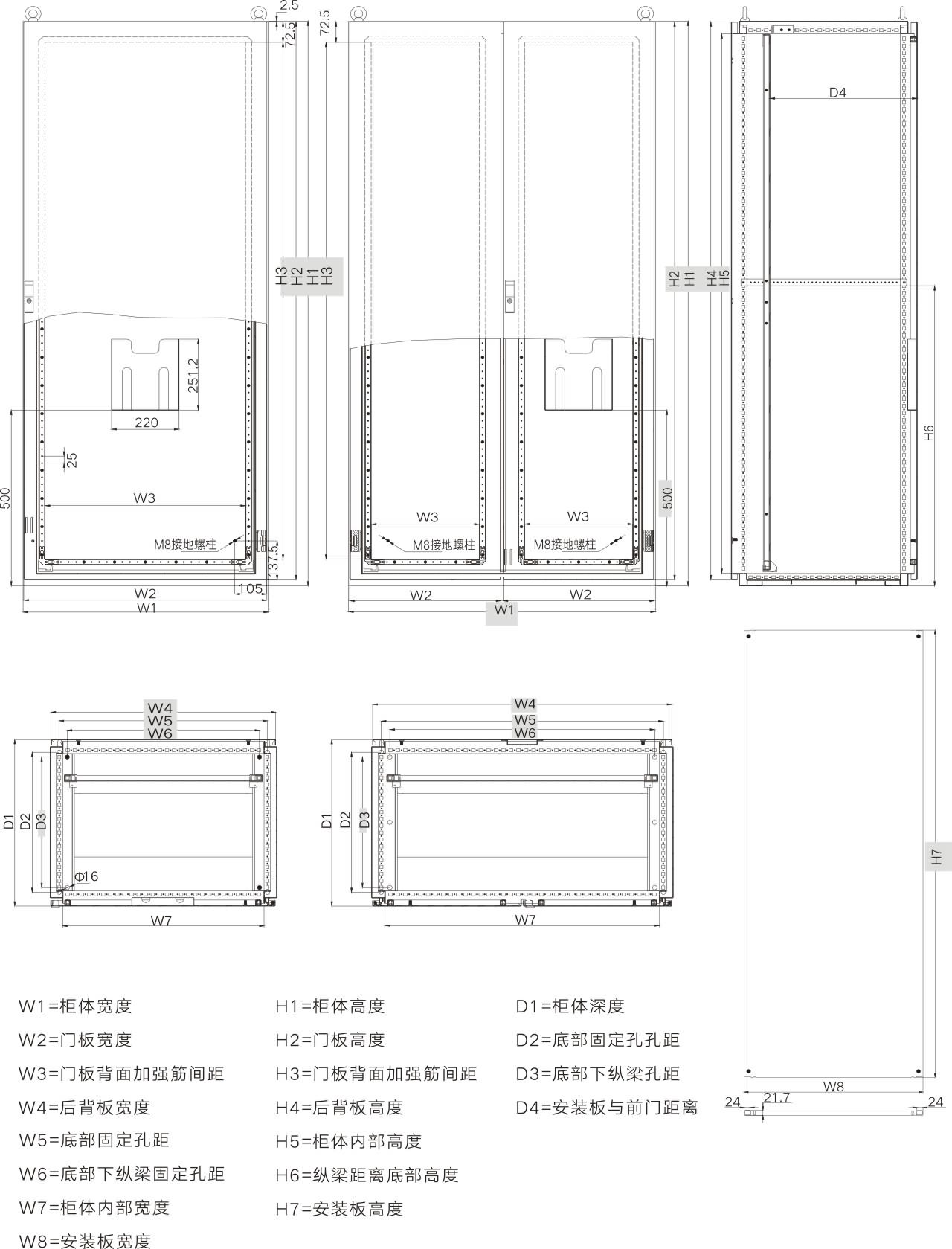

Use these definitions with the model table below. External size is always shown as W × H × D; manufacturing dimensions and cut-outs remain subject to the approved project drawing.
Download original JS source drawing (Chinese)The original factory source is preserved for traceability and may contain Chinese labels. It is not the primary selection information on this page.
Standard selection matrix
Reference models and usable mounting area.
External size is W × H × D. This table supports early selection; verify usable depth, door arrangement, installation hardware and accessories on the quotation drawing.

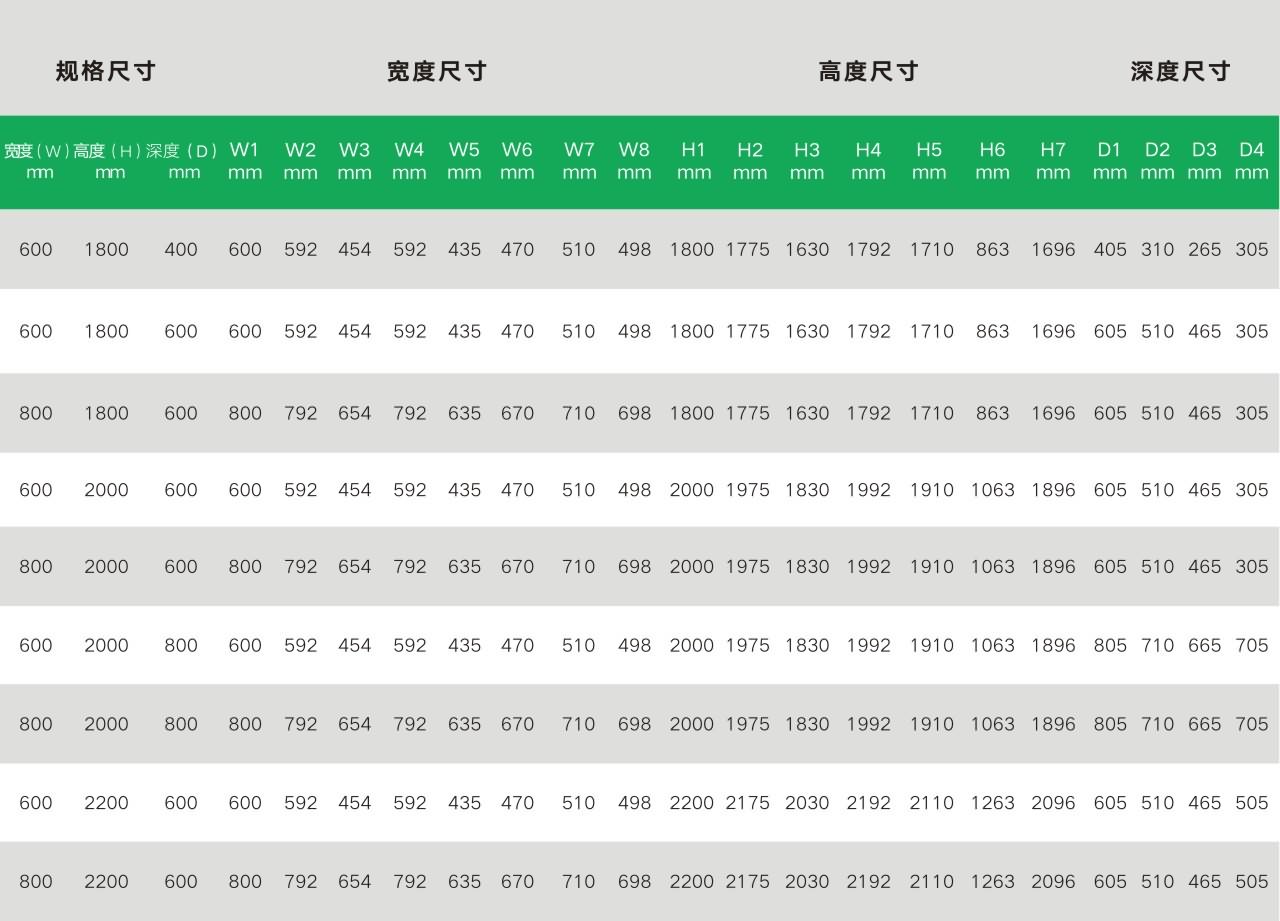

ModelExternal size (W × H × D)Mounting plate (W × H)Selection note
JS601840600 × 1800 × 400 mm498 × 1696 mmConfirm door and options
JS801860800 × 1800 × 600 mm698 × 1696 mmConfirm door and options
JS602060600 × 2000 × 600 mm498 × 1896 mmConfirm door and options
JS802060800 × 2000 × 600 mm698 × 1896 mmConfirm door and options
JS602080600 × 2000 × 800 mm498 × 1896 mmConfirm door and options
JS802080800 × 2000 × 800 mm698 × 1896 mmConfirm door and options
JS602260600 × 2200 × 600 mm498 × 2096 mmConfirm door and options
JS802260800 × 2200 × 600 mm698 × 2096 mmConfirm door and options
Dimensions shown are model references. Final manufacturing dimensions, cut-outs, accessories and protection basis follow the approved drawing and quotation.
Common search questions
Quick answers for JS Standalone Cabinets.
Family guidance narrows the request. The confirmed model, option list and approved drawing remain the final technical identity.
What is JS Standalone Cabinets best suited for?
Used when one self-contained cabinet can house the complete equipment arrangement while preserving cooling, cable routing and maintenance access. Typical applications include plc cabinets, vfd control panels, network and communication cabinets.
Which information is required to select JS Standalone Cabinets?
Start with external size and usable mounting area, equipment heat-loss schedule, door-mounted devices and cut-outs, field cable quantity and entry direction. Final dimensions, construction and accessories are confirmed on the approved model data and drawing.
Can JS Standalone Cabinets be quoted from dimensions only?
Dimensions alone do not define material, usable mounting area, door arrangement, IP target, cut-outs, mounting plate or accessories. Honghao confirms the complete enclosure configuration, quantity and destination before releasing the offer.
Good fit
Use it when
- PLC and HMI control panels
- Single- or multi-drive panels
- Industrial network cabinets
- Utility and process skids
Selection limits
Check before specifying
- External dimensions do not equal usable mounting space
- A high IP target can increase the cooling requirement
- Installed components and field modifications must remain within the approved design basis
Strengths
Why this family
- Independent cabinet format
- Accessible galvanized mounting plate
- Single- and double-door configurations
- Compatible with plinth and thermal accessories
Typical BOM
Accessories
- Plinth and lifting hardware
- Mounting rails and support channels
- Door-mounted equipment brackets
- Gland plates and cable-management parts
- Fans, filters, heaters and thermostats
Application data
What to send
- External size and usable mounting area
- Equipment heat-loss schedule
- Door-mounted devices and cut-outs
- Field cable quantity and entry direction
- Indoor/outdoor environment and IP target
Technical basis
Approved project data remains the final reference.
The final JS enclosure configuration is released from a dimensional drawing and option list. Protection, usable mounting area and thermal performance depend on the complete installed assembly.
Typical applications
Where it is used
RFQ checklist
Get a usable quotation
Send the required W × H × D, equipment or layout drawing, environment, IP target, quantity, options, destination country and required delivery date.
Send BOM or application dataExact configuration
