BEST FITLocal PLC and I/O stations
Wall-mounted electrical enclosures
JA Compact Enclosures
Compact wall-mounted sheet-metal enclosures for local control, junction, small PLC, instrument and machine-interface applications.
A practical choice where equipment must be positioned close to the machine or process and a floor-standing cabinet is unnecessary.
Request enclosure quotation Selection is confirmed against dimensions, layout, environment and the approved drawing.
JA product reference · compact wall-mounted enclosureKEY PARAMETERConstructionCompact folded body with hinged front door
CHECK FIRSTDepth can be the limiting dimension for drives and large terminals
RFQ INPUTRequired W × H × D
Product drawings & details
See the product before selecting the model.
Product views explain the enclosure format; exploded and dimensional drawings define the construction and selection references. Final cut-outs, options and dimensions are released on the approved project drawing.
Compact folded body, reinforced gasketed door, galvanized mounting plate and bottom cable-entry plinth for machine-side installation.

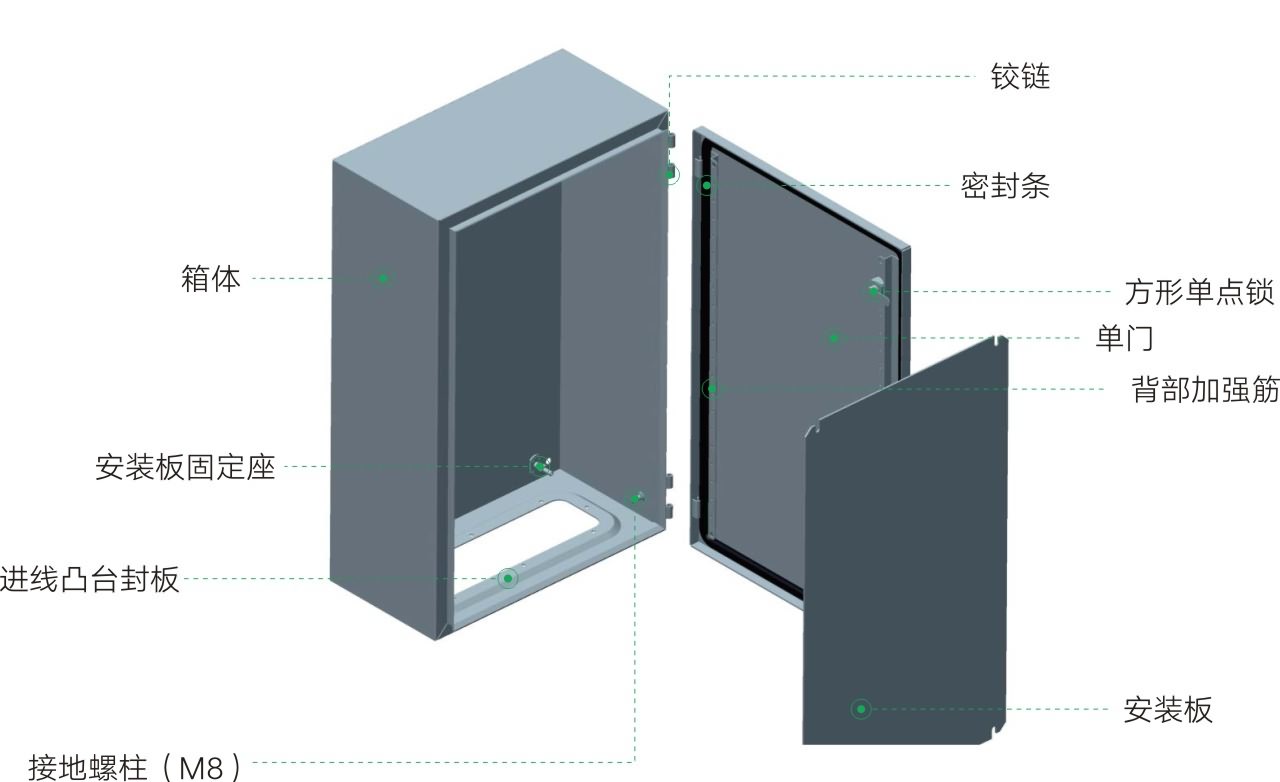

The drawing shows the lifting points, rear panel, body, mounting plate, gasket, door reinforcement, lock and removable cable-entry cover.

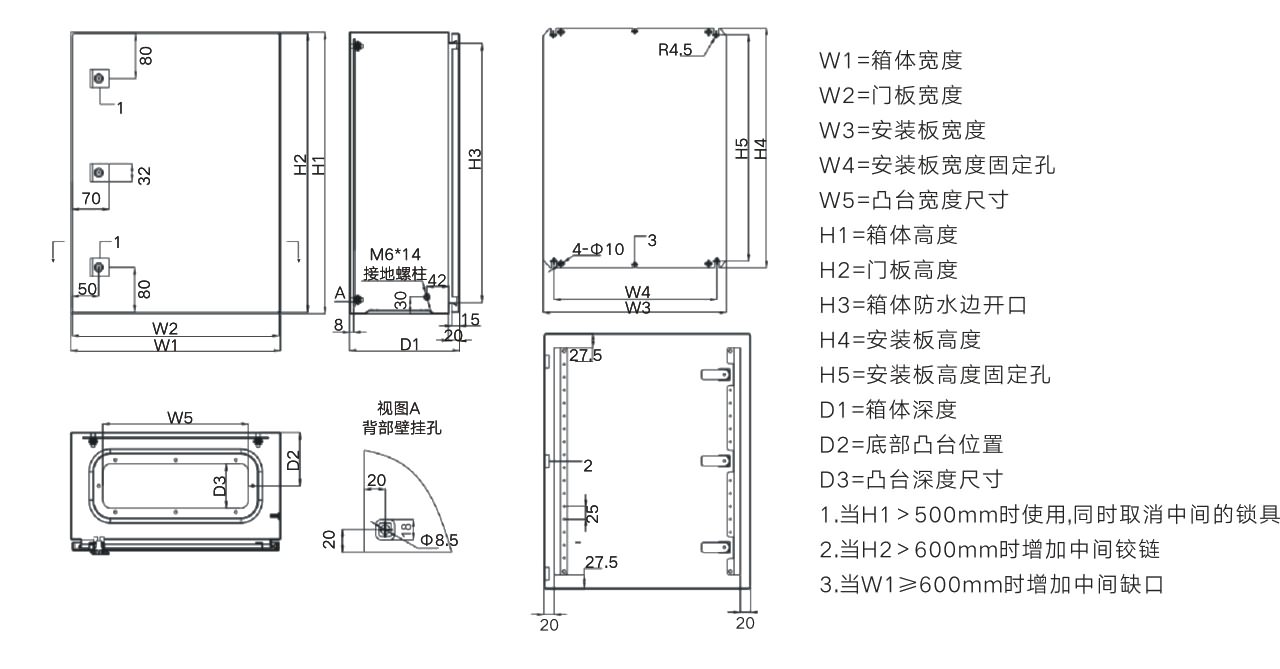

External body, door, mounting plate and wall-fixing references are defined before terminal depth, glands and field access are approved.
Technical parameters
Selection data
These values describe the enclosure family and the decisions behind selection. The exact construction and dimensions are tied to the confirmed model, option list and approved drawing.
ParameterFamily rangeEngineering note
ConstructionCompact folded body with hinged front doorConfirm hinge side, opening angle and wall-fixing method.
Reference sheet thickness2.0 mm body and doorProject-specific size and loading may change the construction basis.
Mounting plate2.5 mm galvanized steel referenceCheck rail depth, terminal access and door-device clearance.
FinishPowder-coated light gray, RAL 7035 referenceStainless or alternative finishes require a separately confirmed option.
ProtectionIP54 standard design basis; up to IP56 by configurationCable glands, door cut-outs and wall fixing affect the final assembly rating.
Reference size rangeApproximately 200 × 300 × 155 to 760 × 760 × 210 mmUse the detailed size matrix and mounting-plate dimensions for selection.
Standard selection matrix
Reference models and usable mounting area.
External size is W × H × D. This table supports early selection; verify usable depth, door arrangement, installation hardware and accessories on the quotation drawing.
ModelExternal size (W × H × D)Mounting plate (W × H)Selection note
JA203015.5200 × 300 × 155 mm154 × 275 mmConfirm door and options
JA303021300 × 300 × 210 mm254 × 275 mmConfirm door and options
JA304021300 × 400 × 210 mm254 × 375 mmConfirm door and options
JA383821380 × 380 × 210 mm334 × 355 mmConfirm door and options
JA405021400 × 500 × 210 mm354 × 475 mmConfirm door and options
JA505030500 × 500 × 300 mm454 × 475 mmConfirm door and options
JA606021600 × 600 × 210 mm554 × 575 mmConfirm door and options
JA608025600 × 800 × 250 mm554 × 775 mmConfirm door and options
JA767621760 × 760 × 210 mm714 × 735 mmConfirm door and options
Dimensions shown are model references. Final manufacturing dimensions, cut-outs, accessories and protection basis follow the approved drawing and quotation.
Common search questions
Quick answers for JA Compact Enclosures.
Family guidance narrows the request. The confirmed model, option list and approved drawing remain the final technical identity.
What is JA Compact Enclosures best suited for?
A practical choice where equipment must be positioned close to the machine or process and a floor-standing cabinet is unnecessary. Typical applications include local control stations, remote i/o boxes, instrument junctions.
Which information is required to select JA Compact Enclosures?
Start with required w × h × d, equipment and terminal layout, cable count and gland sizes, wall structure and fixing method. Final dimensions, construction and accessories are confirmed on the approved model data and drawing.
Can JA Compact Enclosures be quoted from dimensions only?
Dimensions alone do not define material, usable mounting area, door arrangement, IP target, cut-outs, mounting plate or accessories. Honghao confirms the complete enclosure configuration, quantity and destination before releasing the offer.
Good fit
Use it when
- Local PLC and I/O stations
- Machine junction boxes
- Instrument and analyzer interfaces
- Small starter and control assemblies
Selection limits
Check before specifying
- Depth can be the limiting dimension for drives and large terminals
- Wall loading and fixing method remain the installer’s responsibility unless contracted
- Protection is confirmed for the completed and approved configuration
Strengths
Why this family
- Compact machine-side installation
- Broad planning size range
- Removable mounting plate
- Suitable for local controls and junction duties
Typical BOM
Accessories
- Mounting plate
- Wall brackets
- Cable glands and gland plates
- Door stops and locks
- Compact fans, filters or heaters
Application data
What to send
- Required W × H × D
- Equipment and terminal layout
- Cable count and gland sizes
- Wall structure and fixing method
- Environment, coating and IP target
Technical basis
Approved project data remains the final reference.
Reference dimensions and construction support early selection only. Honghao confirms the exact model, mounting-plate dimensions, cut-outs and protection basis before production.
Typical applications
Where it is used
RFQ checklist
Get a usable quotation
Send the required W × H × D, equipment or layout drawing, environment, IP target, quantity, options, destination country and required delivery date.
Send BOM or application dataExact configuration
