BEST FITMachine operator stations
Sloped-front operator enclosures
JQ Operator Consoles
Freestanding operator consoles with an angled instrument surface and lower equipment compartment for machine controls, HMI, pushbuttons and local operating devices.
Used where the operator needs an ergonomic control surface separated from the lower electrical equipment and cable zone.
Request enclosure quotation Selection is confirmed against dimensions, layout, environment and the approved drawing.
JQ1 product reference · sloped operating surface and lower cabinetKEY PARAMETERConstructionSloped upper operating surface with lower cabinet
CHECK FIRSTConsole dimensions must be checked against operator and aisle requirements
RFQ INPUTOperator devices and screen sizes
Product drawings & details
See the product before selecting the model.
Product views explain the enclosure format; exploded and dimensional drawings define the construction and selection references. Final cut-outs, options and dimensions are released on the approved project drawing.

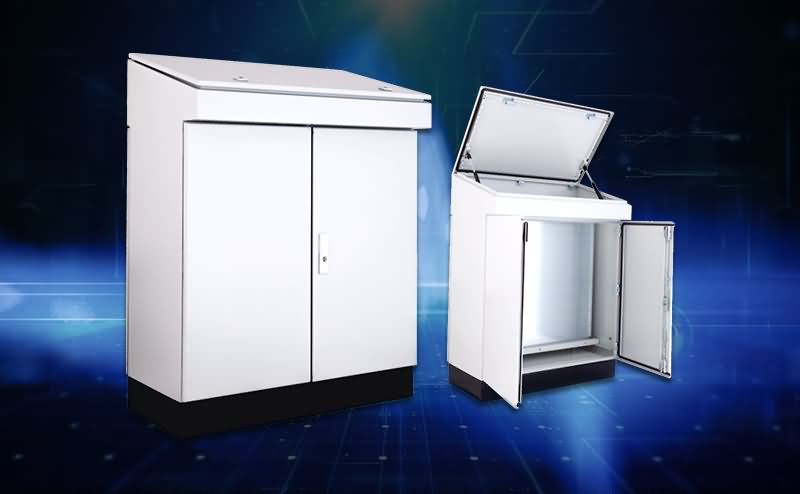

Sloped upper operating surface with front/rear service access and a lower equipment compartment for local machine control.

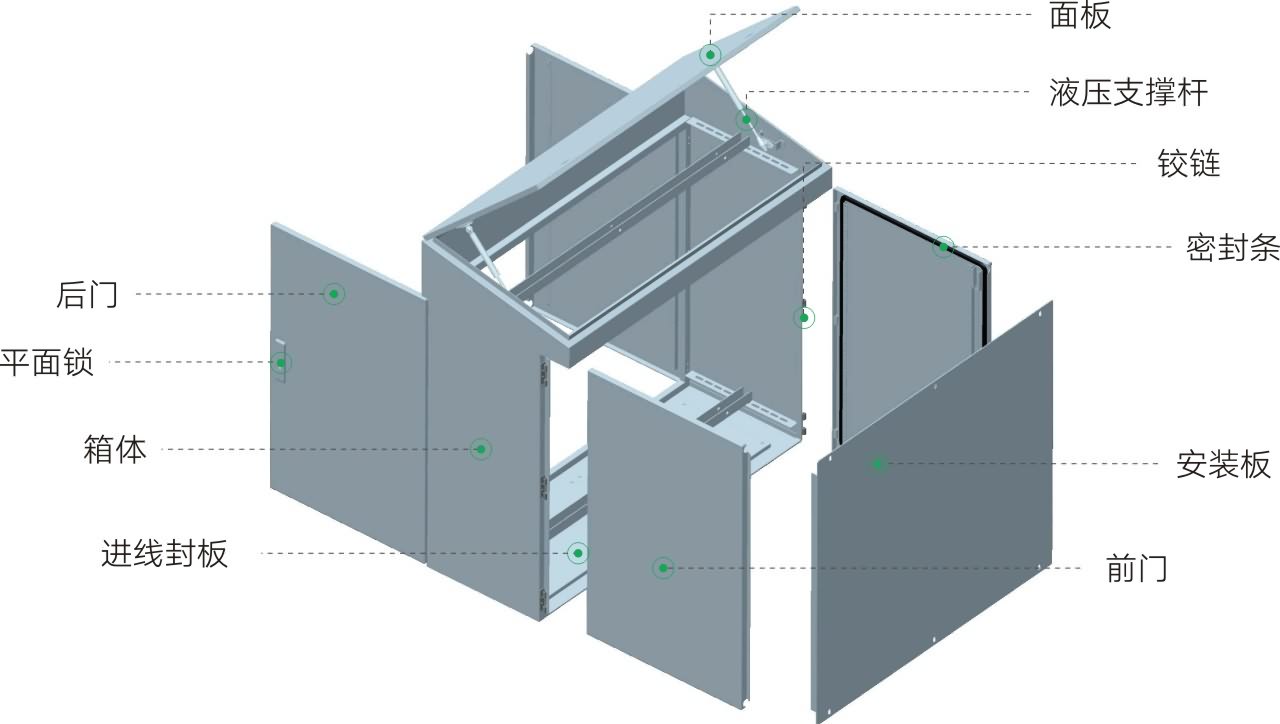

The construction view identifies the upper panel, hydraulic support, lower doors, mounting plate, gasket and cable-entry cover.

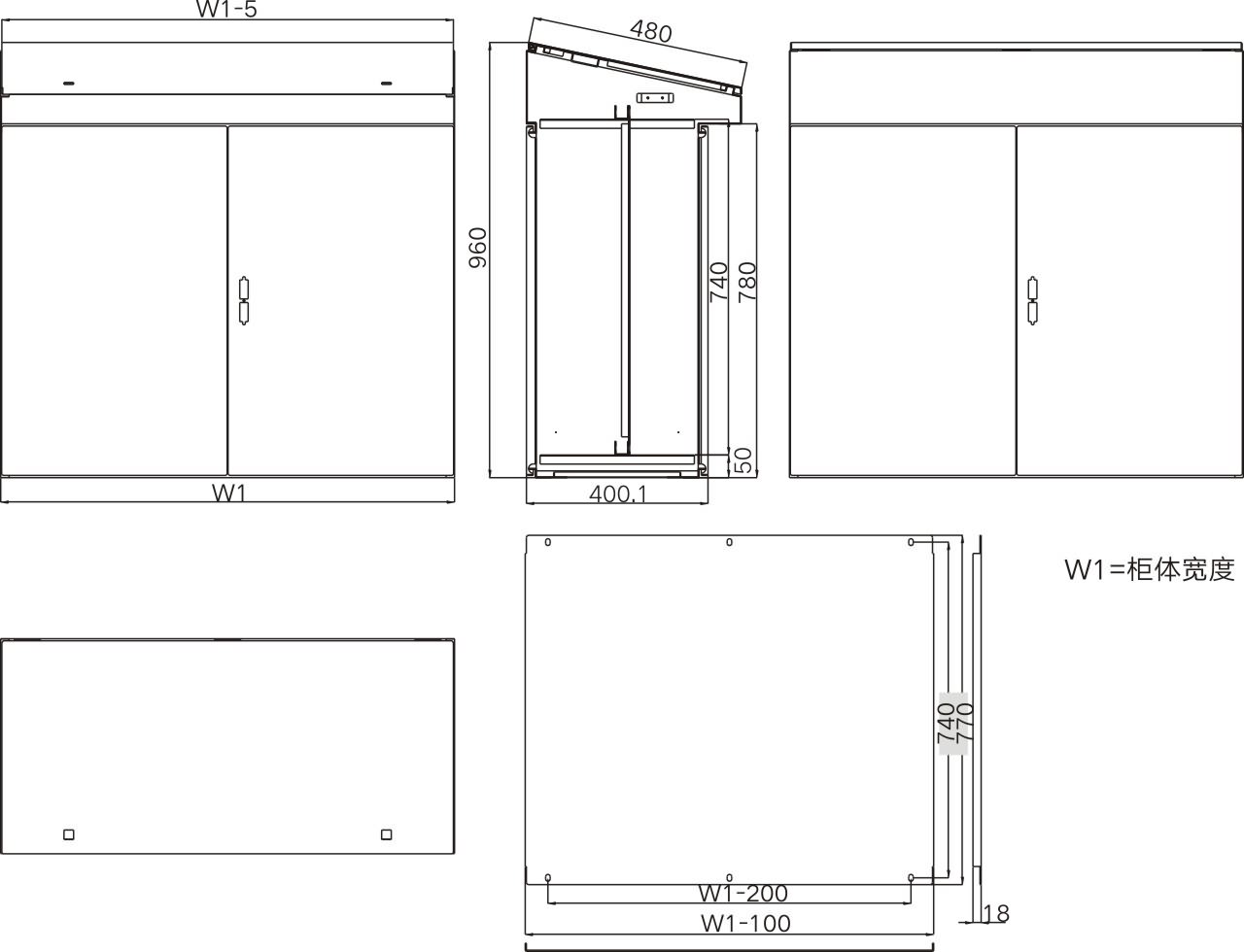

Operating height, sloped surface, lower enclosure, mounting plate and cable-entry zones are coordinated on the approved GA drawing.
Technical parameters
Selection data
These values describe the enclosure family and the decisions behind selection. The exact construction and dimensions are tied to the confirmed model, option list and approved drawing.
ParameterFamily rangeEngineering note
ConstructionSloped upper operating surface with lower cabinetConfirm sight line, operator reach, internal depth and door access.
Reference sheet thickness1.5 mm body and doorsFinal thickness is released against console width, loading and project specification.
Mounting plate2.5 mm galvanized steel referenceSeparate upper device clearance from lower component mounting space.
FinishPowder-coated light gray, RAL 7035 referenceCustom colors require a confirmed color code and finish sample basis.
ProtectionIP53 reference design basisHMI, pushbutton and ventilation cut-outs must be included in the final review.
Reference sizes600 or 800 mm W × 960 mm H × 480 mm DOperator ergonomics and site aisle clearance should be checked on the GA drawing.
Standard selection matrix
Reference models and usable mounting area.
External size is W × H × D. This table supports early selection; verify usable depth, door arrangement, installation hardware and accessories on the quotation drawing.
ModelExternal size (W × H × D)Mounting plate (W × H)Selection note
JQ1-609648600 × 960 × 480 mm500 × 770 mmSingle-width console
JQ1-809648800 × 960 × 480 mm700 × 770 mmWide console
Dimensions shown are model references. Final manufacturing dimensions, cut-outs, accessories and protection basis follow the approved drawing and quotation.
Common search questions
Quick answers for JQ Operator Consoles.
Family guidance narrows the request. The confirmed model, option list and approved drawing remain the final technical identity.
What is JQ Operator Consoles best suited for?
Used where the operator needs an ergonomic control surface separated from the lower electrical equipment and cable zone. Typical applications include packaging machines, production-line stations, inspection systems.
Which information is required to select JQ Operator Consoles?
Start with operator devices and screen sizes, ergonomic height and viewing angle, lower-compartment equipment list, cable entry and floor interface. Final dimensions, construction and accessories are confirmed on the approved model data and drawing.
Can JQ Operator Consoles be quoted from dimensions only?
Dimensions alone do not define material, usable mounting area, door arrangement, IP target, cut-outs, mounting plate or accessories. Honghao confirms the complete enclosure configuration, quantity and destination before releasing the offer.
Good fit
Use it when
- Machine operator stations
- Line control desks
- Test and inspection equipment
- Local process consoles
Selection limits
Check before specifying
- Console dimensions must be checked against operator and aisle requirements
- Device cut-outs change sealing and structural stiffness
- The final completed-console rating requires project verification
Strengths
Why this family
- Ergonomic angled operating panel
- Separate lower equipment compartment
- Suitable for HMI and control-device layouts
- Freestanding serviceable construction
Typical BOM
Accessories
- HMI and pushbutton cut-outs
- Internal mounting plate and rails
- Document pocket and door accessories
- Plinth and cable-entry parts
- Ventilation and service-light options
Application data
What to send
- Operator devices and screen sizes
- Ergonomic height and viewing angle
- Lower-compartment equipment list
- Cable entry and floor interface
- Finish, lock and protection target
Technical basis
Approved project data remains the final reference.
Console geometry, device cut-outs and access are approved on the general-arrangement drawing. Published values are family-level planning references, not a complete production release.
Typical applications
Where it is used
RFQ checklist
Get a usable quotation
Send the required W × H × D, equipment or layout drawing, environment, IP target, quantity, options, destination country and required delivery date.
Send BOM or application dataExact configuration
