Pump & Fan Control Panels
Application-focused panels for single or multiple pumps and fans with duty/standby sequencing, variable-speed control, alarms and remote interfaces.
Used in water, HVAC and building-utility systems where reliable sequencing and process feedback matter as much as the individual starter or drive.
Request panel quotation Selection is confirmed against loads, I/O, interfaces and the approved project basis.

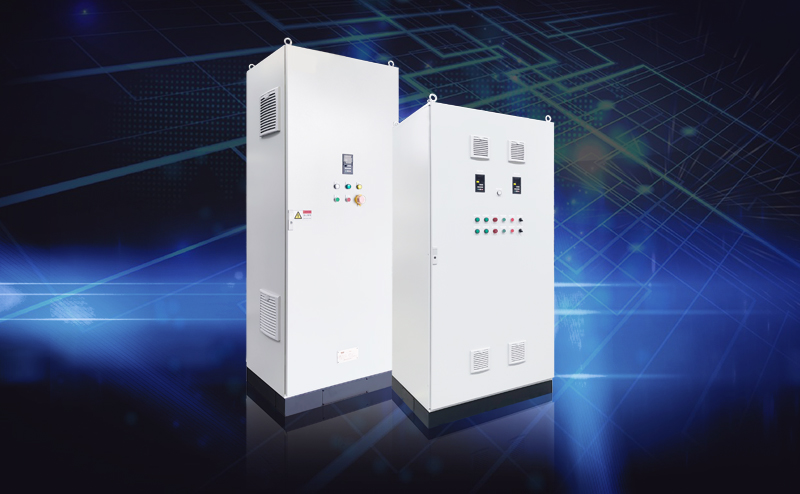

Representative engineered assembly · hydraulic and process inputs define the final systemKEY PARAMETERArchitectureSingle, duty/standby or multi-pump/fan control
CHECK FIRSTPump and fan selection itself is outside the panel scope unless contracted
RFQ INPUTPump/fan and motor schedule
Technical parameters
Selection data
These values describe the engineered panel family and the decisions behind selection. The exact ratings and deliverables are tied to the approved BOM, drawings and project basis.
ParameterFamily rangeEngineering note
ArchitectureSingle, duty/standby or multi-pump/fan controlDefine availability, alternation, lead/lag and degraded operating modes.
Process controlPressure, flow, level, temperature or differential controlProvide instrument ranges, failure behavior and control-loop responsibility.
Motor controlVFD, soft starter or fixed-speed feeder by dutyHydraulic/system curve and operating range inform the method.
AutomationLocal controller with HMI and remote interfaceDefine local/remote authority, alarms, BMS/SCADA points and communication protocol.
AvailabilityAlternation, standby and fault transfer logicSpecify whether maintenance or one failure may interrupt the service.
HandoverDrawings, settings, sequence description and agreed FATField instruments, tuning and process proving are separately defined.
Common search questions
Quick answers for Pump & Fan Control Panels.
Family guidance narrows the request. The approved BOM, drawings and project basis remain the final technical identity.
What is Pump & Fan Control Panels best suited for?
Used in water, HVAC and building-utility systems where reliable sequencing and process feedback matter as much as the individual starter or drive. Typical applications include water supply, wastewater pumping, hvac plants.
Which information is required to select Pump & Fan Control Panels?
Start with pump/fan and motor schedule, system curve or operating points, instrument list and ranges, required modes, alarms and standby philosophy. Final ratings, components and deliverables are confirmed on the approved BOM and project documents.
Can Pump & Fan Control Panels be quoted from a cabinet size only?
A cabinet dimension does not define the loads, protection, control functions, heat, interfaces, tests or documents. Honghao records the complete project basis before confirming the panel offer.
Good fit
Use it when
- Booster and transfer pumps
- Wastewater pump stations
- Cooling-water and HVAC pumps
- Supply and exhaust fans
Selection limits
Check before specifying
- Pump and fan selection itself is outside the panel scope unless contracted
- Control-loop tuning requires real process behavior
- Field instrumentation and remote-system testing need a defined site plan
Strengths
Why this family
- Application-specific sequencing
- Variable- or fixed-speed options
- Remote alarm and supervisory integration
- Defined fail and standby behavior
Typical BOM
Accessories
- Pressure, flow or level interfaces
- Local HMI and selector controls
- VFD bypass where justified
- Remote I/O or communication gateway
- Anti-condensation and thermal management
Application data
What to send
- Pump/fan and motor schedule
- System curve or operating points
- Instrument list and ranges
- Required modes, alarms and standby philosophy
- BMS/SCADA interface and site-test scope
Technical basis
Approved project data remains the final reference.
The functional sequence, hydraulic or airflow duty, instrument data and remote interfaces define the panel architecture. Site commissioning is planned separately from workshop simulation.
Typical applications
Where it is used
RFQ checklist
Get a usable quotation
Send the loads, supply, functional description, I/O and interface data, quantity, destination country, documents and required delivery date.
